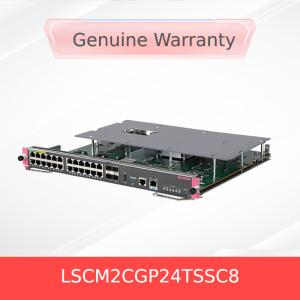

LSCM2CGP24TSSC8 is not just a simple service board, but a main control board module that integrates both the switching engine and the routing engine. Such modules usually have the following characteristics:
- More powerful functions: In addition to providing ports, they may also take on core tasks such as system control and route computation.
- Critical placement: Typically installed in the main control slot of a switch.
- Higher price: Due to their core functionality, they are usually more expensive than ordinary service boards.
Notes before purchase and use:
- Compatibility is key: Before purchasing, be sure to confirm that the module is compatible with your existing or planned H3C switch models (e.g., S7500X-M-G, S7503X-M-G series), and check the required minimum software version.
- Optical modules sold separately: SFP and SFP+ optical interfaces require corresponding optical modules or cables to be purchased separately before they can be used.
Product Specifications
| attribute |
specification |
| Flash |
4GB |
| BootROM |
4MB*2 |
| NVRAM |
1MB |
| SDRAM |
2GB |
| Veneer size (H×W×D). |
40mm×399mm×355mm |
| Power consumption of the board |
23W~45W |
| The type and number of interfaces |
·1consoleport
·1xUSB Consoleport
·1network management port
·1mainUSBport
·4SFP+interfaces
·24SFPinterfaces |
| Interface transmission rate |
·Consoleport:9600bps~115200bps(default9600bps)
·USB Consoleinterface:115200 bit/s≤,9600 bit/sby default
·Network management port:10/100/1000Mbps, half-duplex/full-duplex
·SFP+interface:10Gbit/s,1 Gbit/s,100 Mbit/s
·SFPinterface:1 Gbit/sand100 Mbit/s |
| Cable and maximum transmission distance are available |
·Consoleport: asynchronousEIA/TIA-232cable, transmission distance≤15m
·USB Consoleinterface:USB-ABcable, transmission distance ≤10m
·Network management port:Category5ormore twisted pair cable, transmission distance5m
·SFP+interface:SFP+optical transceiver andSFPoptical transceiver
·SFPinterface: SFPoptical module |
| The host type that the board is compatible with |
S7003X |
